Product Overview

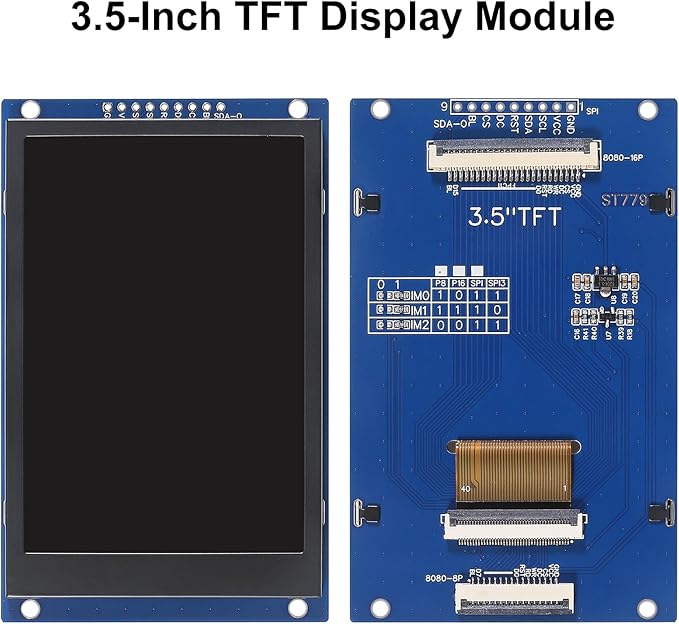

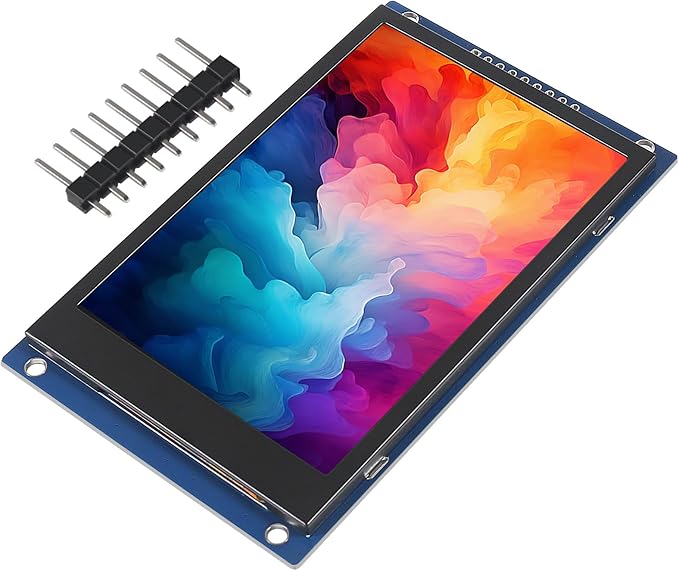

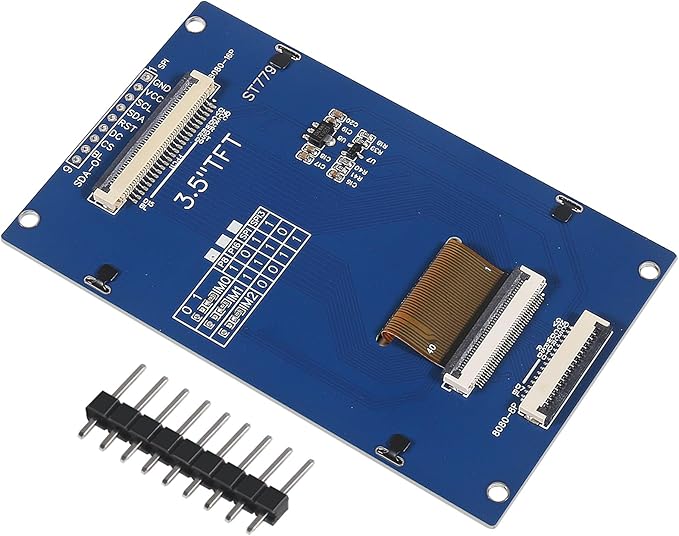

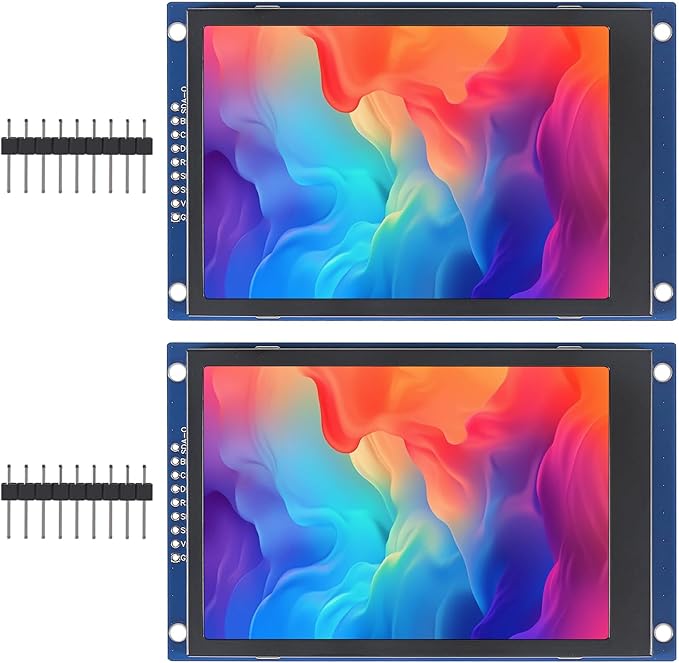

The XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY is a LCD Touch Panels product. It features ★dot matrix: 320x480; interface: spi/8-bit/16-bit parallel port; display color: full.
Key Features
- ★Dot Matrix: 320x480; Interface: SPI/8-bit/16-bit parallel port; Display Color: Full Color; Module Power Supply: 3V~5V
- ★Storage Temperature: -30°C~80°C; Operating Temperature: - 20°C~70°C
- ★Linking Method: COG; Driver IC: ST7796

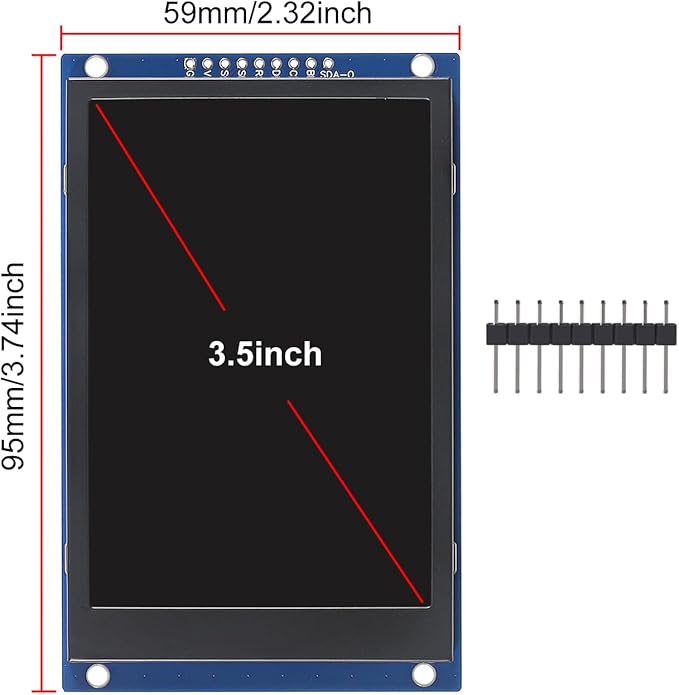

- ★Module Size: 59.19mmx94.84mmx6.3mm; Effective Area: 48.96mmx73.44mm; Dot Distance: 0.153mmx0.153mm

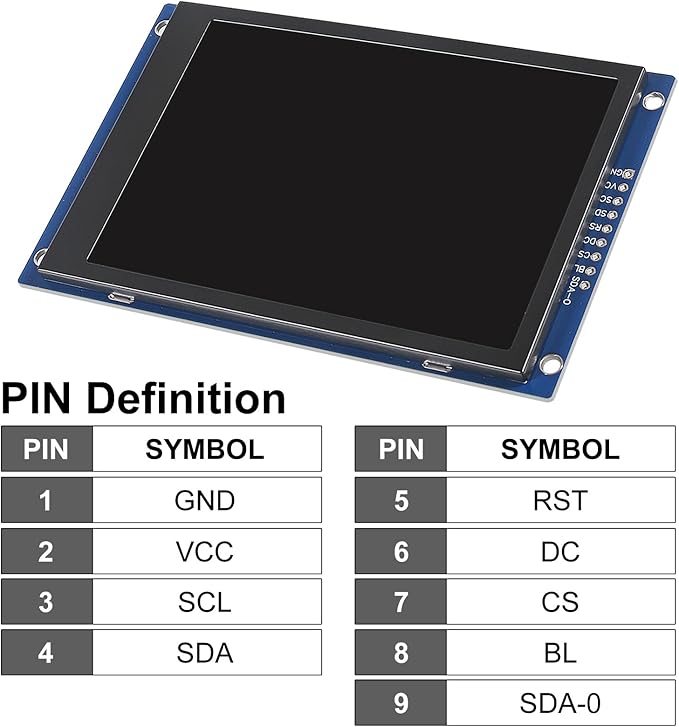

- ★Pin Description: GND: Power ground; VCC: Power Supply Positive; SCL: Clock; SDA: Data; RST: Reset; DC: Command/Data; CS: Chip Select; BL: Backlight; SDA-0: Data
Why Choose the XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY
The XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY offers ★dot matrix: 320x480; interface: spi/8-bit/16-bit parallel port; display and ★storage temperature: -30°c~80°c; operating temperature: - 20°c~70°c. These features make the XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY a strong option in the LCD Touch Panels category.
Best For
The XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY is best suited for everyday lcd touch panels needs.
Quick Summary
The XIITIA 2pcs 3.5" SPI TFT LCD Display Module 320x480 RGB LCD Screen 3.3V ST7796 Drive SPI Interface 8pin Full Color for Arduino DIY is a LCD Touch Panels product by XIITIA. Brand: XIITIA. Connectivity Technology: SPI, Parallel. Operating System: Linux. CPU Manufacturer: ARM. Compatible Devices: Raspberry Pi, Arduino, other microcontrollers with SPI display support. Price: $39.58.
Product Specifications
| Specification | Details |
|---|---|
| Brand | XIITIA |
| Connectivity Technology | SPI, Parallel |
| Operating System | Linux |
| CPU Manufacturer | ARM |
| Compatible Devices | Raspberry Pi, Arduino, other microcontrollers with SPI display support |
