Product Overview
The Waveshare 2inch LCD Display Module is a LCD Graphic Displays product. It features this is a general lcd display module, ips screen, 2inch.
Key Features

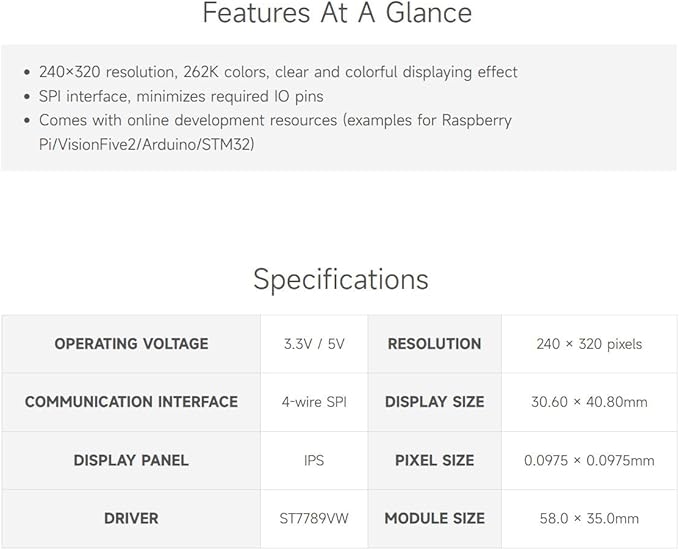

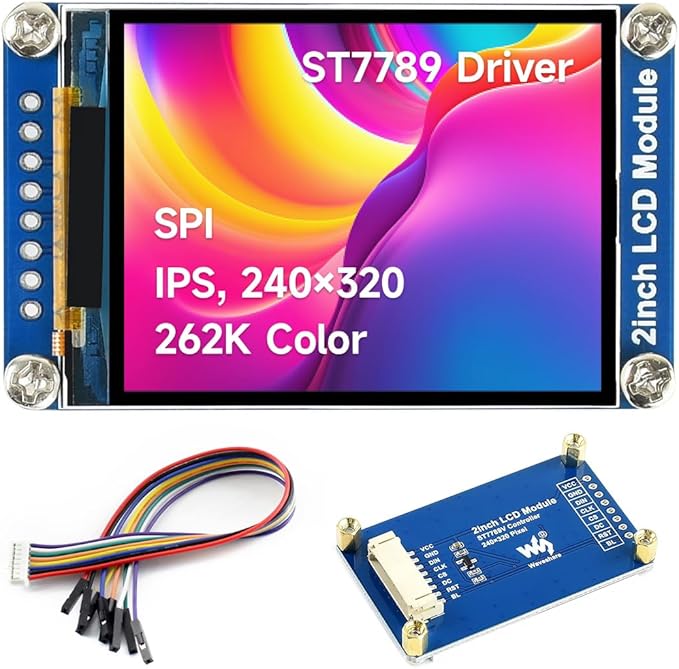

- This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.

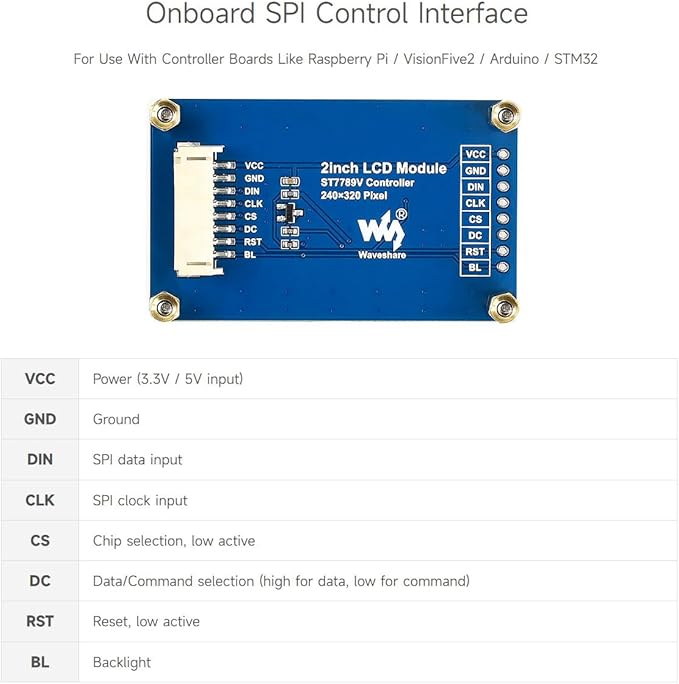

- SPI interface, requires minimum GPIO for controlling

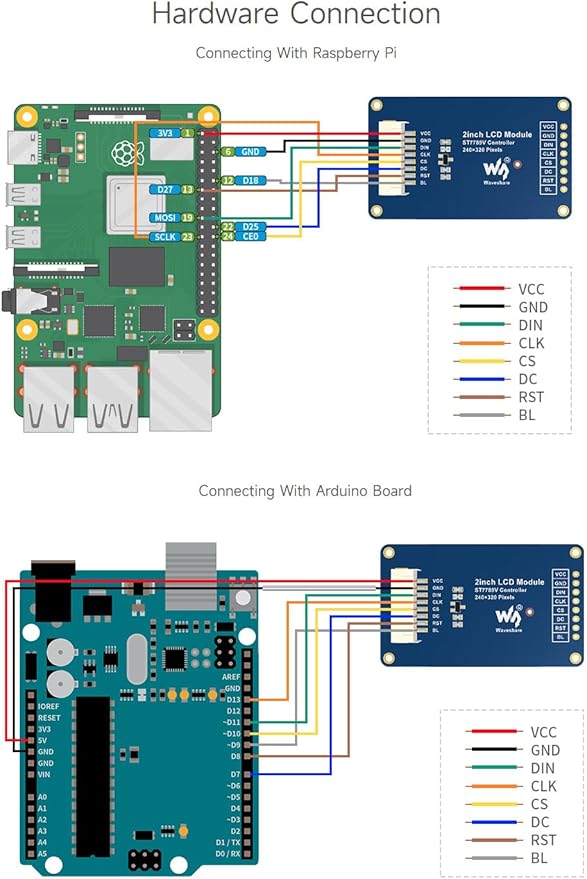

- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/ /STM32)

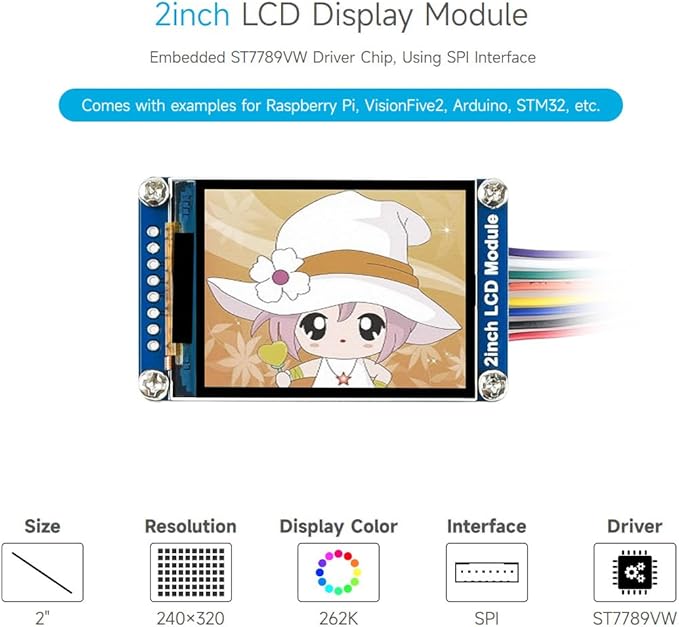

- Driver: ST7789 Interface: SPI Display color: RGB, 262K color
- Resolution: 240×320 Backlight: LED Operating voltage: 3.3V/5V
Why Choose the Waveshare 2inch LCD Display Module
The Waveshare 2inch LCD Display Module offers this is a general lcd display module, ips and spi interface, requires minimum gpio for controlling. These features make the Waveshare 2inch LCD Display Module a strong option in the LCD Graphic Displays category.
Best For
The Waveshare 2inch LCD Display Module is best suited for everyday lcd graphic displays needs.
Quick Summary
The Waveshare 2inch LCD Display Module is a LCD Graphic Displays product by Waveshare. Brand: waveshare. Model Name: 2inch LCD Module. Memory Storage Capacity: 1 TB. Connectivity Technology: SPI. Operating System: Linux. Price: $24.73.
Product Specifications
| Specification | Details |
|---|---|
| Brand | waveshare |
| Model Name | 2inch LCD Module |
| Memory Storage Capacity | 1 TB |
| Connectivity Technology | SPI |
| Operating System | Linux |
