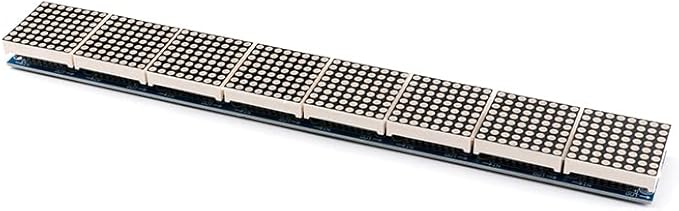

EC Buying MAX7219 Dot Matrix 8 in 1 Display Module

Product Overview

The EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED is a LED Segment Displays product. It features max7219 is an integrated serial i/o common cathode display driver.

Key Features

• MAX7219 is an integrated serial I/O common cathode display driver that connects a microprocessor to an 8-digit 7-segment digital LED display, or to a line graph display or 64 separate LEDs

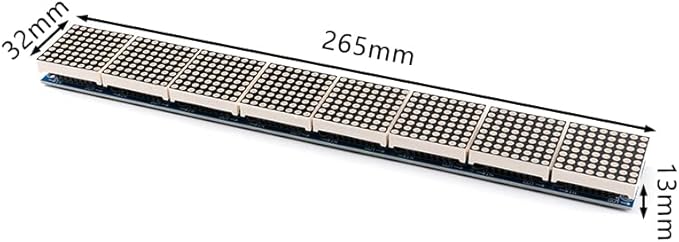

• A single module can drive an 8*8 dot matrix common cathode. An external register is used to set the segment current of each LED with 32 fixed screw holes and a diameter of 3mm
• MAX7219 is a convenient four-wire serial interface that connects all common microprocessors. Each data can be addressed without rewriting all the displays when updating. MAX7219 also allows users to select encoding or no encoding for each data
• The entire device contains a 150 μ A's low power off mode, analog and digital brightness control, a scan limit register that allows users to display 1-8 bits of data, and a detection mode that enables all LEDs to glow
• Only 3 I/O ports are needed to drive 1 lattice; No flicker on dot matrix display; Modules with input and output interfaces support cascading

Why Choose the EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED

The EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED offers max7219 is an integrated serial i/o common cathode and a single module can drive an 8*8 dot. These features make the EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED a strong option in the LED Segment Displays category.

Best For

The EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED is best suited for: Lightweight.

Quick Summary

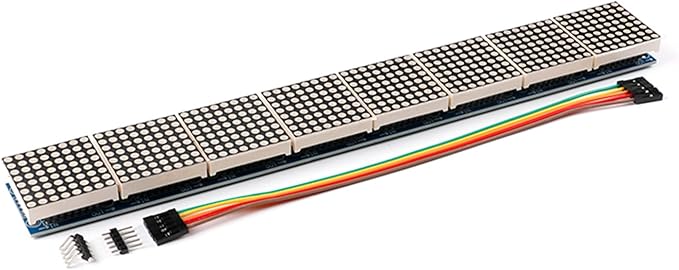

The EC Buying MAX7219 Dot Matrix 8 in 1 Display Module for Arduino Microcontroller - Electronic SCM Control Drive LED is a LED Segment Displays product by ECBuying. Brand: EC Buying. Graphics Card Description: This is the description of the pc graphics. Specific Uses For Product: Everyday Use. Model Name: MAX7219. Included Components: Cables, Instructions. Price: $21.43.
