Product Overview

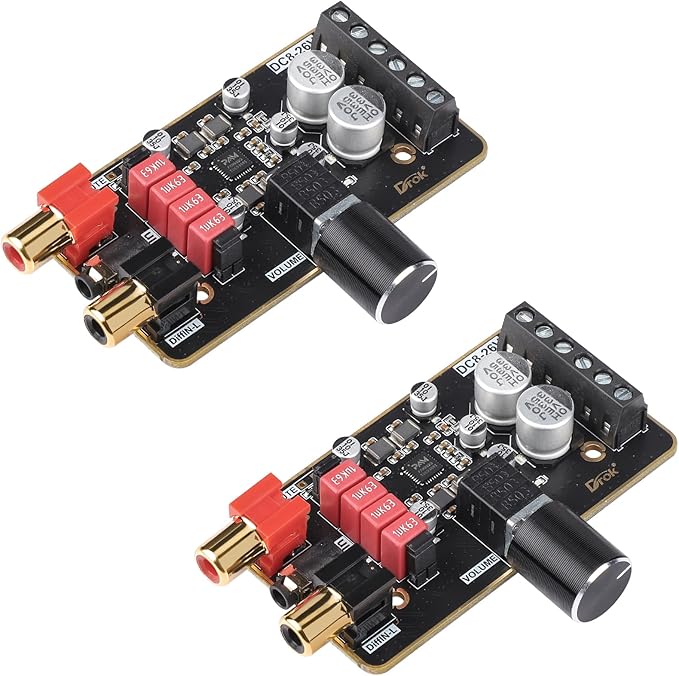

The DROK 15W+15W 2.0 2pcs 12V Amplifier Board is a Amplifiers product. It features parameters: drok audio amplifier board working voltage is dc 8-26v,.
Key Features

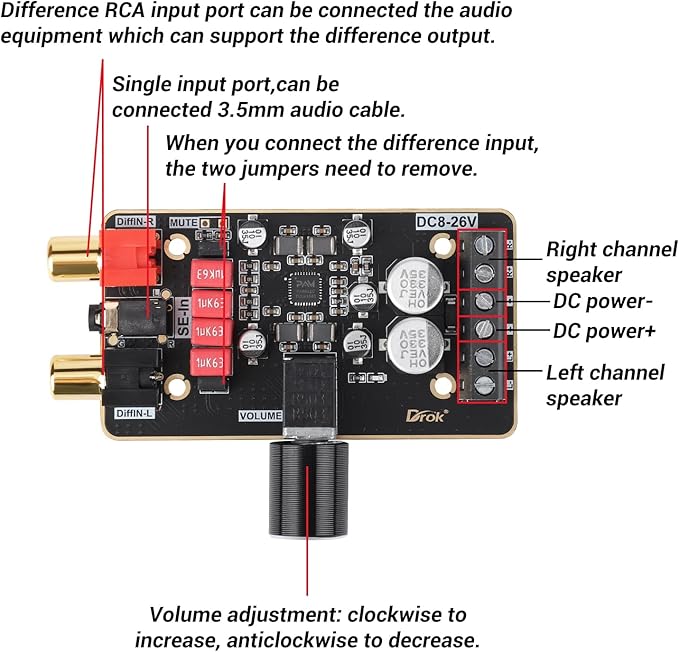

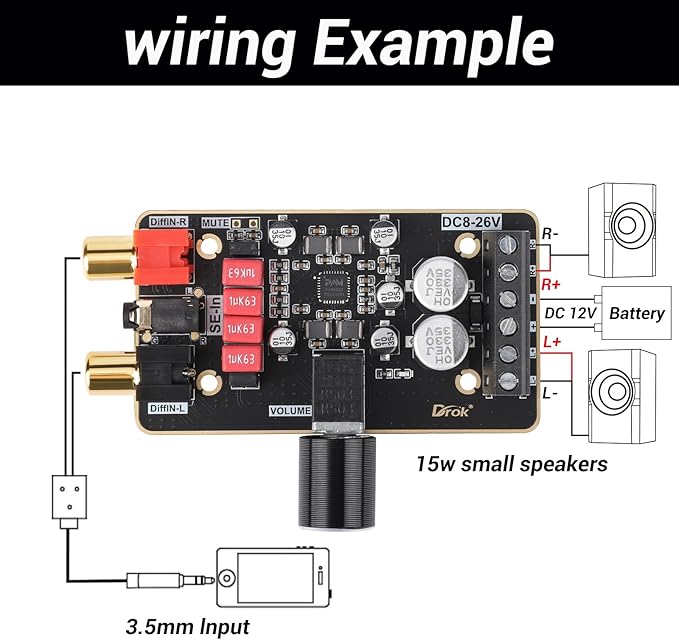

- Parameters: DROK audio amplifier board working voltage is DC 8-26V, can be powered by 12V, 24V; output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm), if connect 4 ohm or 2 ohm speaker, the power will be automatically limited to 15W.
- Artificial Material: this New-designed stereo amplifier module is made of noble black immersion gold circuit board, PAM8620 chip, imported KEMET speaker capacitor, large-capacity filter capacitor for channels. Besides, we customized black copper terminal blocks and gold-plated audio input terminal blocks for this new amplifier module.
- High Performance: the class D power amp module is with high efficiency of over 90%, general harmonic distortion noise is less than 0.2%, low quiescent current and noise suppression.
- Safe Protection: the 2 channel amp board is designed with input reverse connection protection, short circuit protection, over heat protection, overcurrent protection, overvoltage protection, undervoltage protection; what's more, EMI is allowed to pass.

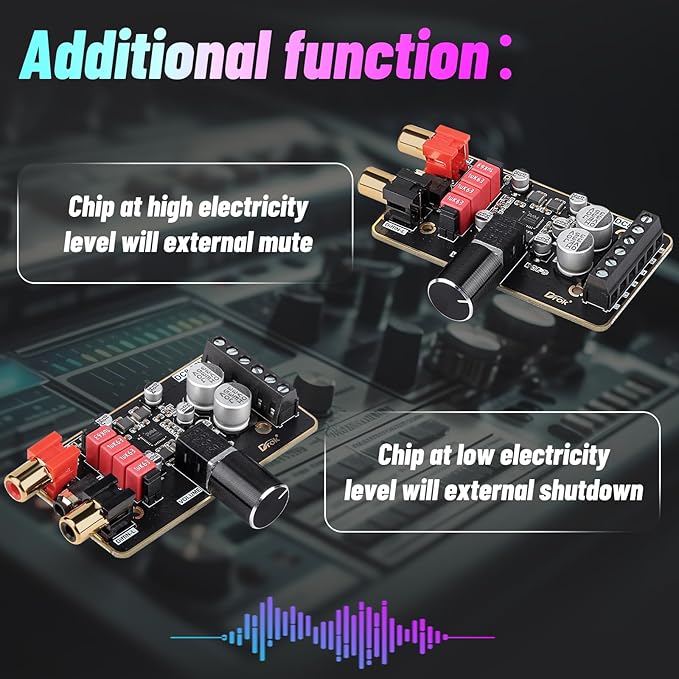

- Additional Function: it is available to connect external mute function (MUTE: High level mute, factory default low level); available to add an external Shutdown (SD: the chip will be Shutdown at low electricity level, factory defaults high electricity level.
Why Choose the DROK 15W+15W 2.0 2pcs 12V Amplifier Board
The DROK 15W+15W 2.0 2pcs 12V Amplifier Board offers parameters: drok audio amplifier board working voltage is and artificial material: this new-designed stereo amplifier module is. These features make the DROK 15W+15W 2.0 2pcs 12V Amplifier Board a strong option in the Amplifiers category.
Best For
The DROK 15W+15W 2.0 2pcs 12V Amplifier Board is best suited for everyday amplifiers needs.
Quick Summary
The DROK 15W+15W 2.0 2pcs 12V Amplifier Board is a Amplifiers product by DROK. Voltage: 26 Volts (DC). Maximum Supply Voltage: 26 Volts (DC). Minimum Supply Voltage: 8 Volts (DC). Mounting Type: Surface Mount. Price: $38.61.
Product Specifications
| Specification | Details |
|---|---|
| Voltage | 26 Volts (DC) |
| Maximum Supply Voltage | 26 Volts (DC) |
| Minimum Supply Voltage | 8 Volts (DC) |
| Mounting Type | Surface Mount |
