DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer

DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer

$23.08 USD
$23.08 USD
Shipping calculated at checkout.

Product Overview

The Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB is a Timers product by Valefod. It features 【multifunction timer relay】programmable delay modes to control the relay timings,.

Key Features

  • 【Multifunction Timer Relay】Programmable delay modes to control the relay timings, widely used at smart home, industrial control, automatic irrigation, indoor ventilation, protection equipment etc.

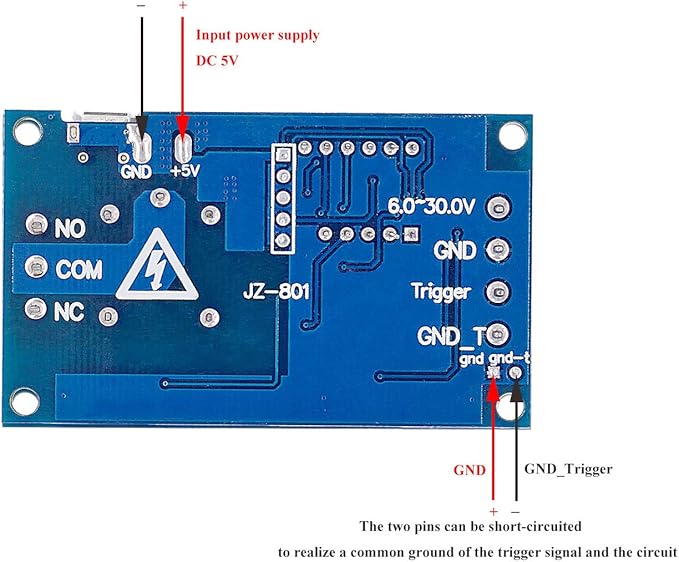

  • 【Load Range】Operating voltage: DC 6V - 30V, support micro USB 5V power supply. High level trigger: 3V - 24V. NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Timing range: 0.1s ~ 999mins (continuously adjustable).

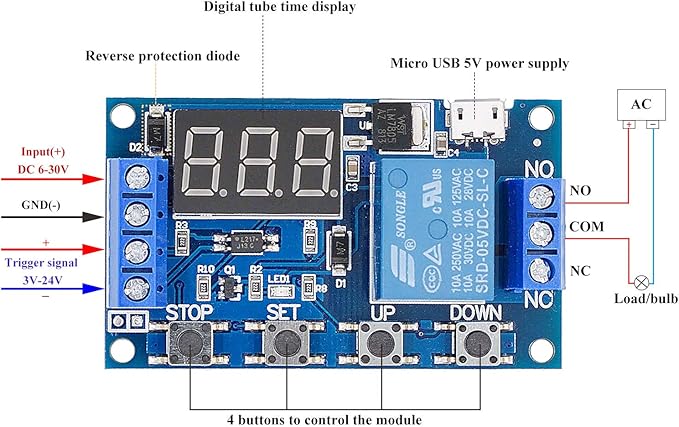

  • 【Reverse Protection】Built-in a diode to provide protection against accidental reverse polarity for the circuits.
  • 【Sleep Mode】If no operation within 5 minutes, the digital tube of the relay board will turn off automatically. Pressing any button can wake it up.
  • 【Parameter Setting】OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.

Why Choose the Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB

The Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB offers 【multifunction timer relay】programmable delay modes to control the and 【load range】operating voltage: dc 6v - 30v, support. These features make the Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB a strong option in the Timers category.

Best For

The Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB is best suited for everyday timers needs.

Quick Summary

The Valefod [2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB is a Timers product by Valefod. Connector Type: Usb. Contact Material: Silver Nickel. Contact Type: Normally Open. Current Rating: 10 Amps. Mounting Type: PCB Mount. Price: $23.08.

Product Specifications

Specification Details
Connector Type Usb
Contact Material Silver Nickel
Contact Type Normally Open
Current Rating 10 Amps
Mounting Type PCB Mount
