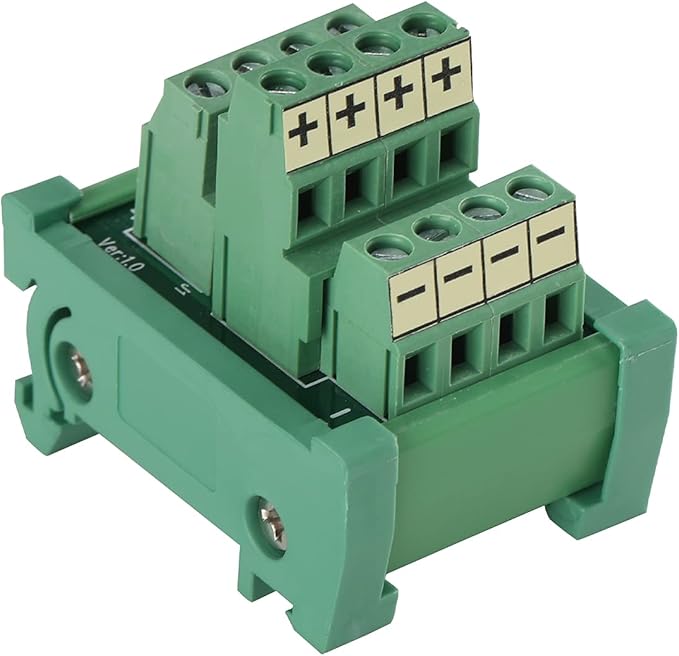

Product Overview
The ANMBEST 2 in 4 Out Terminal Blocks Module is a Connecting Blocks product. It features this is a 2 in 4 out power distribution module,.
Key Features

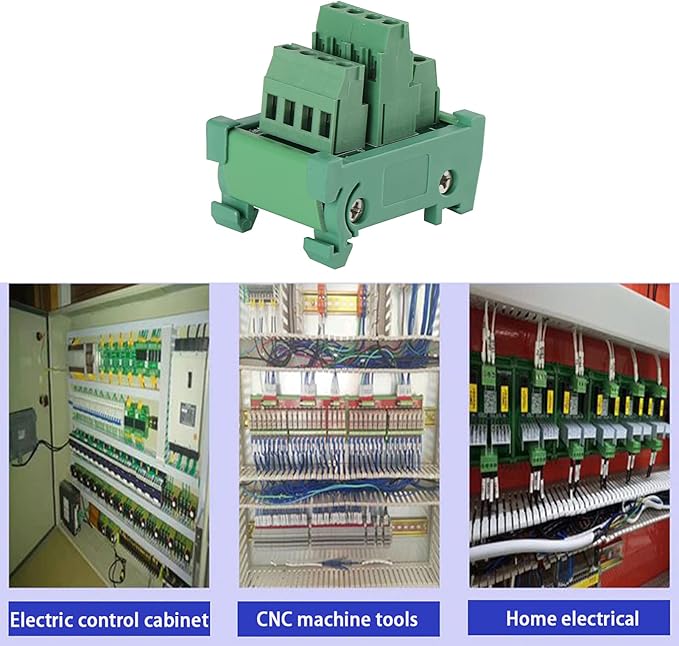

- This is a 2 in 4 out power distribution module, widely used in PLC, servo, DIN track installation, power amplifier, Home electrical, etc.

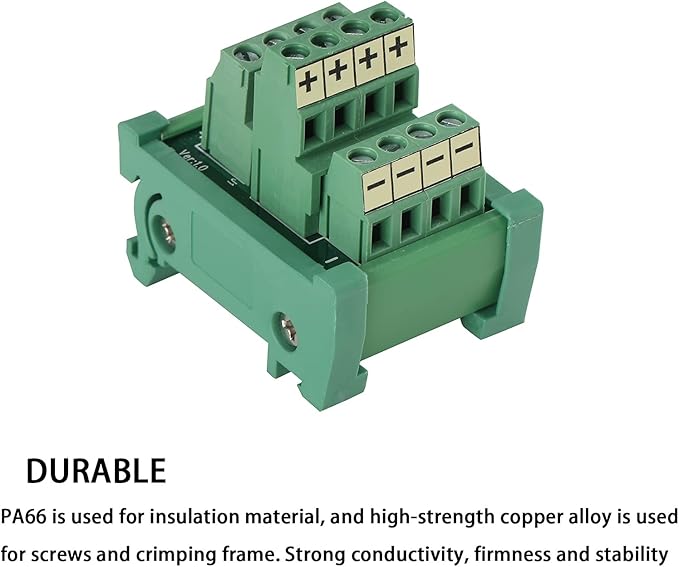

- PA66 is used for insulation material, and high-strength copper alloy is used for screws and crimping frame. Strong conductivity, firmness and stability, and long service life.
- These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB.

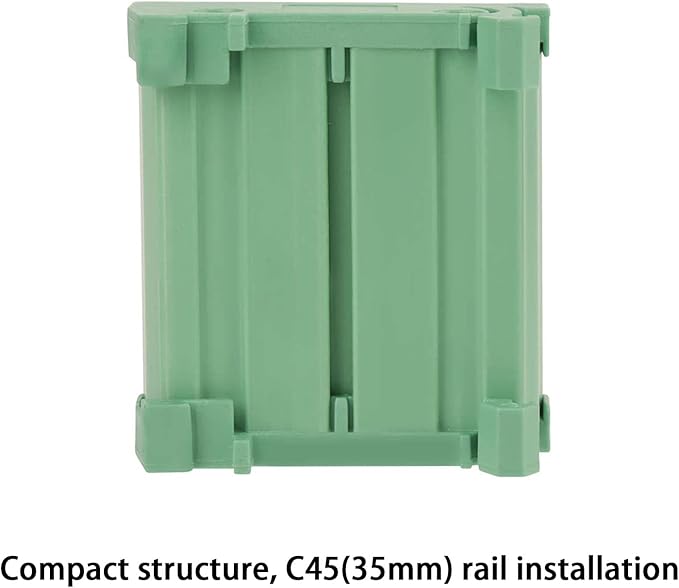

- Compact structure, C45(35mm) rail installation, high efficiency.

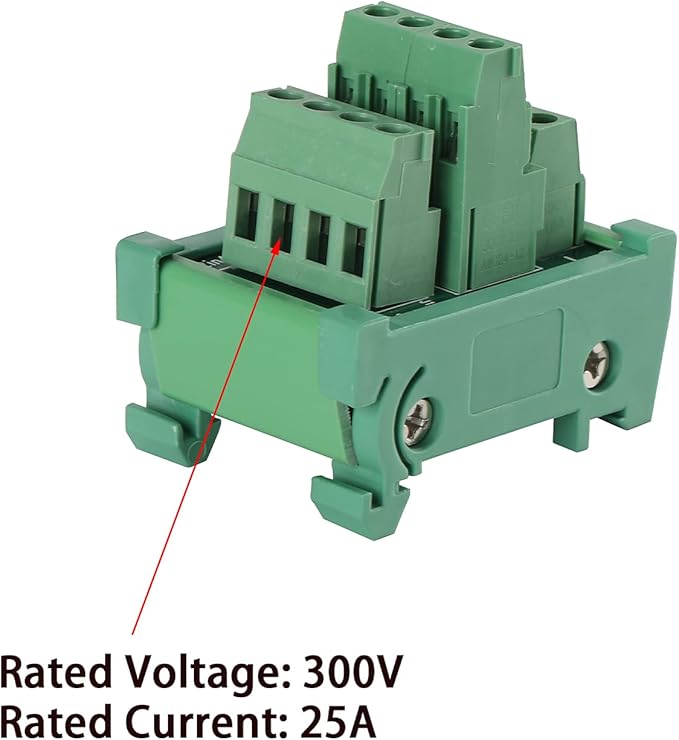

- 300V rated voltage, 25A rated current, can meet most of the needs of life.
Why Choose the ANMBEST 2 in 4 Out Terminal Blocks Module
The ANMBEST 2 in 4 Out Terminal Blocks Module offers this is a 2 in 4 out power and pa66 is used for insulation material, and high-strength. These features make the ANMBEST 2 in 4 Out Terminal Blocks Module a strong option in the Connecting Blocks category.
Best For
The ANMBEST 2 in 4 Out Terminal Blocks Module is best suited for everyday connecting blocks needs.
Quick Summary
The ANMBEST 2 in 4 Out Terminal Blocks Module is a Connecting Blocks product by ANMBEST. Current Rating: 25 Amps. Item Pitch: 5 Millimeters. Connector Type: Screw. Number Of Contacts: 2. Mounting Type: DIN Rail Mount. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 25 Amps |
| Item Pitch | 5 Millimeters |
| Connector Type | Screw |
| Number Of Contacts | 2 |
| Mounting Type | DIN Rail Mount |
| Material | Brass |
| Color | Green |
| Brand | ANMBEST |
| Voltage | 300 Volts |
| Number Of Poles | 2 |
